Transportation of petrochemical and chemical products as well as liquefied gas products (LPG and others) requires the highest standard of valve performance, particularly in the transportation of flammable or hazardous fluids and gases by liquid and gas marine tankers. NBS's UNIFLOW has been used extensively in marine tankers carrying refined oil products, chemicals and gases.

Features Other HP Butterfly Valves Constructions Disc/Shaft Arrangement Fire Safe API/BS Approved − Clean Air Preservation TA-LUFT Approved − Performance Bi-directional Sealing − Seat Life Gland Seal Life Operating Torque

Features PTFE Seated Gate Valve Construction Body Pocket There might be Sealing problem Fire Safe API/BS approved − Clean Air Preservation TA-LUFT Approved − Performance Bi-directional Possible Seat Life Gland Seal Life Maintenance Operation Cost

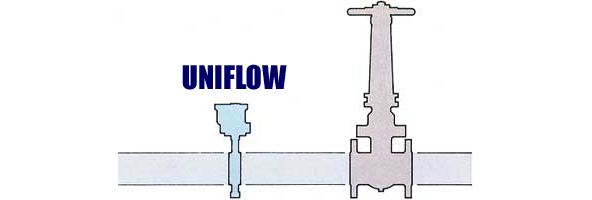

Manual Type JIS 10K-150A

Wafer Type (33kg)

Double Flanged Type Gate Valve (120kg)

Wafer Type

Double Flanged Type

Complete Bi-directional Sealing. Double Seat eliminates deforming or damaging under high differential pressure and high fluid velocity.

The Disc moves entirely away from the seat at all points in the very few degrees. This assures a long seat life.

TA-LUFT Approved No Maintenance is Necessary

Seat replacement can be done very easily and quickly without disassembling the shaft and disc.

It is a safety mechanism that can lock the valve fully closed or fully open positions.

Easy Maintenance. Its construction prevents contamination by rust, seawater etc and assures trouble-free operation.

Easy Maintenance. Its construction prevents contamination by rust, seawater etc and assures trouble-free operation.

Wafer type UNIFLOW with Screw Gear (Compl. Closed type) (For On-deck,Pump room)

Wafer type UNIFLOW with Screw Gear (Open type) (For In-tank)

Wafer type UNIFLOW with Long Handle with Screw Gear (Compl. Closed type) (For On-deck,Pump room)

Wafer type UNIFLOW with Long Bonnet with Screw Gear (Compl.Closed type) (For On-deck)

Double Flanged type UNIFLOW with Hydraulic Actuator (For On-deck,Pump room,In-tank)

Wafer type UNIFLOW with Hydraulic Double Cylinder Actuator

Wafer type UNIFLOW with Pneumatic Double acting Actuator (For Pump room)

Top Handle

Deck Stand

Lock Lever Handle

SPECIFICATIONS

Valve Standard Specifications (for Petro Products)

Applied Flange Standard JIS 5K, 10K, 16K, 20K ANSI Class 150, 300   ISO/DIN PN10, 16, 25 Connection Wafer Type, Semi-Lug Type, Double Flanged Type Nominal Size 80mm(3") 〜 600mm(24") Body Material Ductile Iron, 304SS Soft Single Seat PTFE Soft Double Seat PTEE/316SS Allowable Leak Rate Soft Single Seat: Bubble Tight Soft Double Seat: Bubble Tight

Valve Standard Specifications (for Chemical Products)

Applied Flange Standard JIS 5K, 10K, 16K, 20K ANSI Class 150, 300   ISO/DIN PN10, 16, 25 Connection Wafer Type, Semi-Lug Type, Double Flange Type Nominal Size 80mm(3") 〜 600mm(24") Body Material 304SS, 316SS, 316L, Monel Soft Single Seat PTFE Soft Double Seat PTEE/316SS Allowable Leak Rate Soft Single Seat: Bubble Tight Soft Double Seat: Bubble Tight

Valve Standard Specifications (for Liquefied Gas -LPG, LNG)

Applied Flange Standard JIS 10K, 20K ANSI Class 150, 300   ISO/DIN PN10, 16, 25 Connection Wafer Type, Double Flange Type Nominal Size 80mm(3") 〜 600mm(24") Body Material 304SS, 316SS Soft Double Seat LPG PTEE/316SS LNG Please consult us. Metal Seat Inconel Allowable Leak Rate Soft Double Seat: Bubble Tight Metal Seat: ANSI Class V (Class IV×10-1for larger than 350mm/14"）

Actuator Standard

Type Screw Gear HYDRO POWER Rotary Actuator Completely Closed Type Open Type Single Cylinder Supply Pressure 40 〜 70K Double Cylinder Supply Pressure 40 〜 140K Size 35L, 50L, 70L, 90L 35L, 50L, 70L, 90L Housing Ductile Iron 304SS, 316SS, 316L Ductile Iron Drive Arm Ductile Iron The same as the housing material Ductile Iron Handle Round Handle Yoke Bar Yoke Bar − Options Long Bonnet Long Handle Air Ventilation Plug Safe Seal Coupling Hydraulic Pressure- Supply Flanges

Related Products: Deck Stand, Top Handle, Lock Lever Handle
