COMPARISON
JIS10K,ANSI CLASS 150
Performance

・Leakage Zero
・Bi-Directional Sealing
・-45℃～180℃
・Vacuum 0.02Torr ～ 1.0MPa
Applicable Fluids ・Gas,Liquid
JIS10K, 20K, ANSI CLASS 150, 300, 600
Performance ・Leakage Zero
・Bi-Directional Sealing
・-45℃～200℃
・Vacuum 0.02Torr ～ 10.2MPa
Applicable Fluids ・Gas,Liquid Gas,Liquid, Steam
JIS10K, 20K, ANSI CLASS 150, 300, 600
Performance ・


・
・
・		 Allowable Leakage
　 ANSI CLASS V (≦12")
　 ANSI CLASS Ⅳ×10-1 (≧14")
Bi-Directional Sealing
-45℃～650℃
10.2MPa max.
Applicable Fluids ・ Gas,Liquid Gas,Liquid, Steam
Double Acting (NC09－NC65)
・Operating Pressure ：0.39MPa
・Working Temperature ：-20℃～+80℃
・Output Torque (at0.39 MPa) ：82.5～583N-m

Spring Return (NC09S－NC65S)
・Operating Pressure ：0.39MPa
・Working Temperature ：-20℃～+80℃
・Output Torque (at 0.39MPa) ：28～282N-m
Double Acting (NB-13N～NB-28N)
・Working Pressure ：0.39MPa
・Working Temperature ：-20℃～+80℃
・Output Torque (at 0.39MPa) ：780～8500N-m
Spring Return(NB-13NS～NB-28NS)
・Working Pressure ：0.39MPa
・Working Temperature ：-20℃～+80℃
・Output Torque (at 0.39MPa) ：270～3630N-m

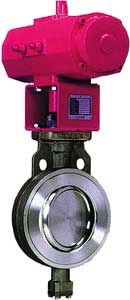

UNIPOWER
Double Acting
Wafer Type
UNIPOWER
Double Flange Type
Manual Gear
Single Flange Type
Lock Lever
Wafer Type
UNIPOWER
Double Acting
Wafer Type
UNIPOWER
Wafer Type
UNIPOWER
Spring Return
Wafer Type
(Cryogenic,High Temperature)
SPECIFICATIONS
Rating ANSI CLASS 150 / 300 / 600
JIS 10K / 20K / 30K / 40K / 63K
PN 10 / 16 / 25 / 40 / 64 / 100
Seat Soft Single, Soft Double, Fire Safe
Size 　50mm(2") - 1200mm(48")
